5.7 Colors

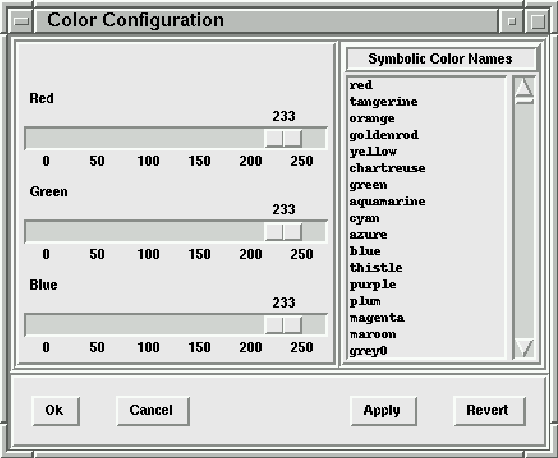

   To change to a different background color, choose the ``Configure/Colors'' menubutton. The window shown in figure 5.15

Figure 5.15: Configure Background Color

will be displayed. From this window, you can choose from one of the ``Symbolic Color Names'' from the listbox; or, you can set your own color by adjusting the individual Red, Green or Blue sliders. This window contains the following buttons:

saves your current selection.
aborts the operation.
applies your selection to the nxqddb window. Note, you must click ``Ok'' to save the change.
sets the color prior to opening the ``Color Configuration'' window.
