6 Presentation

Tuple trees lend themselves to various representations for different purposes. The external form used by Qddb in its database files prefaces each value with its leaf identifier, omitting those attributes that have empty values.

The readable form is a textual representation of the tuple tree with attributes given their local (textual) names and with structured attributes surrounded by parentheses.

For example, consider the following schema tree: A ( B* C )* D. A simple readable form of a tuple tree might be:

        A (
            B = "10"
            C = "20"
        )
        D = "30"
A is a structured attribute containing subattributes B and C. Since the attributes A and A.B are expandable and values can be empty, tuples can be more complex:
        A (
            B = "10"
            B = "80"
            C = "20"
        )
        A (
            B = "40"
        )
        D = "30"
Multiple instances of expandable attributes are always adjacent in the readable form. Attributes with empty values are omitted. Qddb uses the readable form for a text-editor interface to data.

   figure230

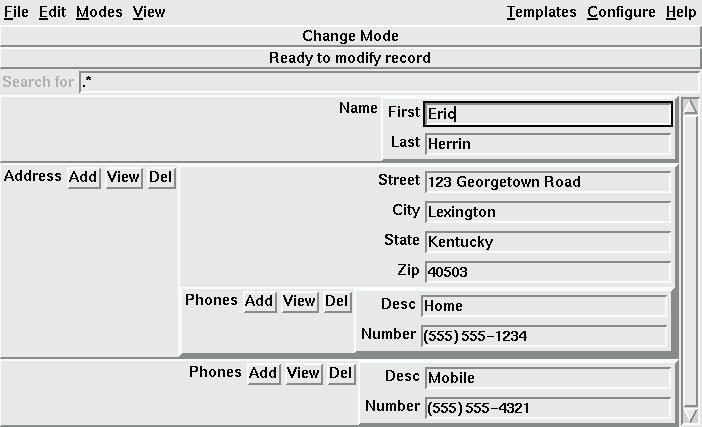

Figure 5: The graphical form of a tuple tree

For the convenience of Tcl programmers, Qddb supports the tcl form of tuple trees. In this form, a tuple tree is a list of (attribute, value) pairs, where the attribute is a leaf identifier and the value is a string.

The newest presentation form of a tuple tree is the graphical form. The graphical form is displayed in a window (in the X Window System [Scheifler & Gettys 1986]). Given the following schema tree, Qddb tools automatically build the graphical form of the tuple shown in Figure 5.

         Name ( First Last )
         Address ( Street City State Zip Phones (Desc Number)* )*
         Phones ( Desc Number )*

The graphical form looks very similar to the schema tree gif. At any given time, the graphical form displays one complete row in a single tuple.

Rows of an expandable attribute associated with the current complete row are accessible by interactively selecting a ``View'' button. This button invokes the ProduceAttributes algorithm introduced in Section 4.3. For example, suppose we are in the 2nd instance of Address and wish to view Address.Phones. The viewed rows are produced by evaluating:

        r = ProduceAttributes(Address.2.Phones)

If we choose to view the Address attribute, the viewed rows are produced with:

        r = ProduceAttributes(Address)

In other words, choosing the Address attribute's ``View'' button shows all possible rows beginning at the Address node in the tuple tree. Choosing the Address.Phones ``View'' button shows all rows beginning at the Address.Phones node in the current instance of Address in the tuple tree. All views are configurable, that is, the user can choose to view only certain columns, sort by given columns, and order the columns.

The user can add a new instance of an expandable attribute by selecting the ``Add'' button. This button adds an entire branch (with initially empty contents or default values) to the tuple tree. Similarly, the user can delete an entire branch of the tuple tree by selecting the ``Del'' button.

The graphical form provides a clean interface for attributed searching. The user may specify one or more keys for all attributes. If multiple keys are specified for a particular attribute, each constitutes a search. The results of the searches within a particular attribute are combined by strong operations. The results of searches across attributes are then combined using weak intersection, and the result is pruned by the algorithm presented in Section 5.2. The matching tuples are then read, and the rows that satisfy the query are constructed and displayed.
